型號：U1D-B1xxxx-DR-HY
D255*W100*H40.5
產品規格
-
Efficiency (效率)
>85% at typical load and 48Vdc/24Vdc input
-
Power Good Signal（P.G信號延時）
On delay 100mS to 500mS
-
Rise Time(上升時間)
16mS maximum at 48Vdc/24Vdc full load
-
Output Protection（輸出保護）
SCP,OPP,OCP,OVP,OTP
-
Operating(工作溫度)
0℃~50℃
-
Storage（儲存溫度）
-40℃~70℃
- The power supply meet EN60950,EMC,EMI Class A level
- （符合EN60950、EMC、EMI Class A等級標準）
- Power Range

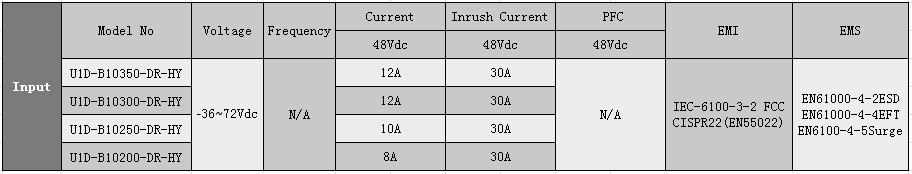

- Input Condition

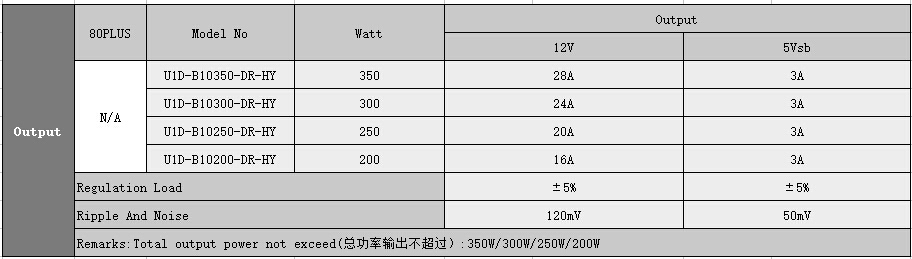

- Output Range
