型號：U1A-B1xxxx-DR-HY
D234*W81.5*40mm
產品規格
-
Efficiency (效率)
>84% at typical load and 115Vac input
-
Power Good Signal（P.G信號延時）
On delay 100mS to 500mS
-
Hold Time（關機保持時間）
16mS minimum at 115Vac input and 80% full load
-
Rise Time(上升時間)
20mS maximum at 115Vac full load
-
Output Protection（輸出保護）
SCP,OPP,OCP,OVP,OTP
-
Operating (工作溫度)
0℃~50℃
-
Storage（儲存溫度)
-40℃~70℃
- The power supply meet EN60950,EMC,EMI Class A level
- （符合EN60950、EMC、EMI Class A等級標準）
- Power Range

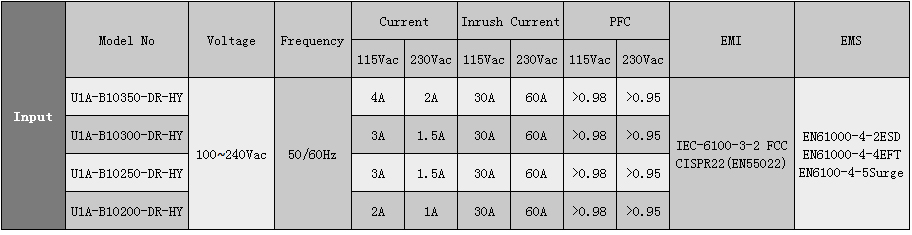

- Input Condition

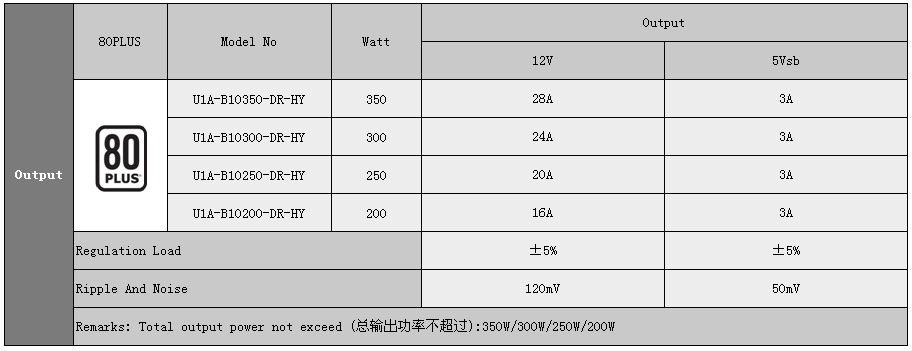

- Output Range
